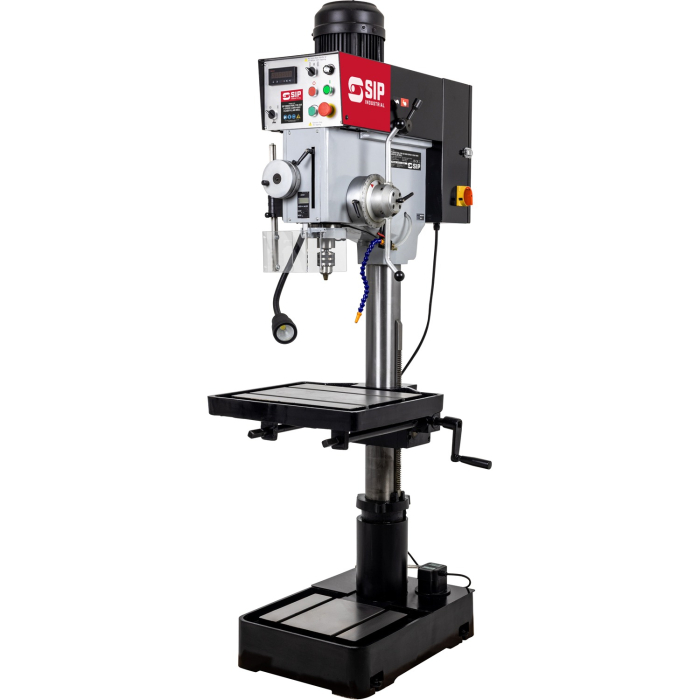

SIP Industrial F40-IDA Vari-Speed 2.2kW 400v Floor Pillar Drill 01721
The SIP Industrial F40-IDA 2.2kW 400v Floor Pillar Drill is a heavy-duty pillar drill specifically designed for professional metalwork and fabrication workshops.
Featuring a variable frequency drive inverter transmission, the drill delivers high torque output across a consistent 65rpm to 2000rpm spindle speed for powerful and precise drilling of up to max. ⌀ 40mm. An integrated auto-drilling function also increases workshop efficiency, particularly during repetitive tasks.
Engineered for demanding production environments, this adjustable and heavy-duty drill also features enhanced safety features to protect operators.
SIP Industrial F40-IDA Vari-Speed 2.2kW 400v Floor Pillar Drill 01721
The SIP Industrial F40-IDA 2.2kW 400v Floor Pillar Drill is a heavy-duty pillar drill specifically designed for professional metalwork and fabrication workshops.
Featuring a variable frequency drive inverter transmission, the drill delivers high torque output across a consistent 65rpm to 2000rpm spindle speed for powerful and precise drilling of up to max. ⌀ 40mm. An integrated auto-drilling function also increases workshop efficiency, particularly during repetitive tasks.
Engineered for demanding production environments, this adjustable and heavy-duty drill also features enhanced safety features to protect operators.
Applications & uses: Designed for professional metalwork and fabrication workshops. Ideal for drilling ferrous and non-ferrous metals including mild steel, aluminium, copper, brass, stainless steel, cast iron and wrought iron. Metal Fabrication: drilling holes in steel plates and box sections. General Engineering: creating precise holes for bolts, pins and shafts in various metal components. Production & Assembly: panels for machinery, motor mounts or bearing housing, metal beams, gates, railings and enclosures.
Features:
- Variable frequency inverter drive transmission with wide 65-2000rpm speed range
- Infinitely variable control dial for precise spindle speed setting
- High torque output for consistent drilling power of up to max. ⌀ 40mm
- Fitted with heavy-duty drill chuck and compatible with MT3 (Morse Taper 4)
- Tapping function for threading high-quality screw holes up to max. ⌀ 25mm
- Recirculating coolant system maintains optimal drilling conditions
Technical Data:
- ITEM NO. 01721
- Input Supply: 400v (16A)
- Motor Power: 2.2kW
- No. of Speeds: 65rpm - 540rpm (low) / 245rpm - 2000rpm (high)
- Max. Drilling Capacity: 40mm
- Max. Tapping Capacity: 25mm
- Spindle Taper: MT4
- Table Size: 560mm x 475mm
- Base Size: 688mm x 486mm
- Column Diameter ⌀ 115mm
- Swing: 530mm
- Height: 2040mm
- Spindle Travel: 150mm
- Collar Diameter: ⌀ 174mm
- Max. Distance: 605mm (spindle to table) / 1150mm (spindle to base)
- Warranty: 2 Year
What's Included:
- 1x SIP Industrial F40-IDA Vari-Speed 2.2kW 400v Floor Pillar Drill (400v/16A)
- 1x drill chuck (compatible with Morse Taper 4)
- 1x drill drift
- 1x chuck key
- 1x, cranking handle
- 1x Y-type socket wrench
- 2x handles for headstock and table
| Brand | SIP |
|---|
