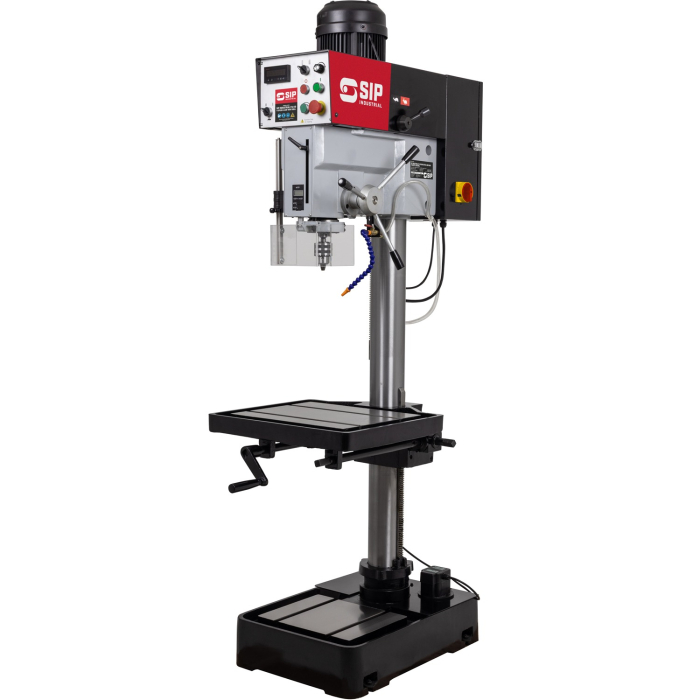

SIP Industrial F32-ID Vari-Speed 2.2kW 400v Floor Pillar Drill 01720

SIP Industrial F32-ID Vari-Speed 2.2kW 400v Floor Pillar Drill 01720.

The SIP Industrial F32-ID Vari-Speed 2.2kW 400v Floor Pillar Drill is a heavy-duty pillar drill specifically designed for professional metalwork and fabrication workshops.

Featuring a variable frequency drive inverter transmission, the drill delivers high torque output across a consistent 65rpm - 2000rpm spindle speed for powerful and precise drilling of up to max. ⌀ 32mm. A tapping function allows threading of high-quality screw holes up to max. ⌀ 19mm.

Engineered for demanding production environments, this adjustable and heavy-duty drill also features enhanced safety features to protect operators.

Applications & uses: Designed for professional metalwork and fabrication workshops. Ideal for drilling ferrous and non-ferrous metals including mild steel, aluminium, copper, brass, stainless steel, cast iron and wrought iron. Metal Fabrication: drilling holes in steel plates and box sections. General Engineering: creating precise holes for bolts, pins and shafts in various metal components. Production & Assembly: panels for machinery, motor mounts or bearing housing, metal beams, gates, railings and enclosures.

Features:

• Variable frequency inverter drive transmission with wide 65-2000rpm speed range
• Infinitely variable control dial for precise spindle speed setting
• High torque output for consistent drilling power of up to max. ⌀ 32mm
• Fitted with heavy-duty drill chuck and compatible with MT3 (Morse Taper 3)
• Tapping function for threading high-quality screw holes up to max. ⌀ 19mm
• Recirculating coolant system maintains optimal drilling conditions

Technical Data:

• ITEM NO. 01720
• Input Supply: 400v (16A)
• Motor Power: 2.2kW
• No. of Speeds: 65rpm - 540rpm (low) / 245rpm - 2000rpm (high)
• Max. Drilling Capacity: 32mm
• Max. Tapping Capacity: 19mm
• Spindle Taper: MT3
• Table Size: 560mm x 475mm
• Base Size: 688mm x 486mm
• Column Diameter ⌀ 115mm
• Swing: 530mm
• Height: 1665mm
• Spindle Travel: 150mm
• Collar Diameter: ⌀ 174mm
• Max. Distance: 530mm (spindle to table) / 1180mm (spindle to base)
• Warranty: 2 Year

What's Included:

• 1x SIP Industrial F32-ID Vari-Speed 2.2kW 400v Floor Pillar Drill (400v/16A)
• 1x drill chuck (compatible with Morse Taper 3)
• 1x drill drift
• 1x chuck key
• 1x, cranking handle
• 1x Y-type socket wrench
• 2x handles for headstock and table.
