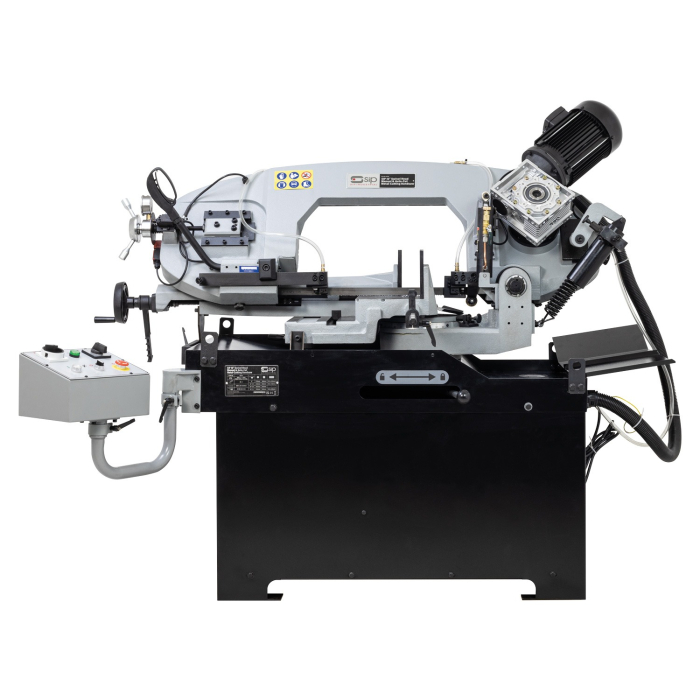

SIP 15" Swivel Head Manual & Auto-Cut Metal Bandsaw 01530

SIP 15" Swivel Head Manual & Auto-Cut Metal Bandsaw

The SIP 15" Swivel Head Manual & Auto-Cut Metal Bandsaw is a powerful and accurate auto-cutting bandsaw ideal for cutting bar, tube and profile workpieces using a range of metal types. This includes mild steel, stainless steel, aluminium, copper, brass and alloys.

SIP Metal-Cutting Bandsaws are highly efficient, easy to use and safely cut metal to a high standard, helping to avoid use of manual cutting operations. They are an essential machine for metal and engineering workshops.

Applications & uses: Ideal for professional metal fabrication and engineering workshops. Suitable for cutting mild steel, stainless steel, aluminium, copper, brass and alloys. Cleanly cuts bar, tube and profile workpieces.

Features:

• Dual swivel head function
• Two-speed motor (1.1kW - 1.5kW)
• Direct drive motor gearbox transmission
• Semi-automatic and manual cut-down functions
• Heavy-duty cast iron swivel bow head
• Adjustable cast iron vice
• Enhanced safety features

Technical Data:

• ITEM NO. 01530
• Input Supply: 400v 3-PHASE
• Motor Power: 1.5kW (2hp)
• Transmission: 2-Speed Direct Drive Gearbox
• Blade Speed Range: 34mtr/min / 68mtr/min
• Blade Size: 3160mm x 27mm x 0.9mm
• Coolant System: Yes
• Angle Range: 45°, 30°, 15° (left), 0°, 15°, 30°, 45°, 60° (right)
• Cutting Capacity @ 0°: 270mm (circle) / 260mm (square) / 220mm x 370mm (rectangle)
• Cutting Capacity @ 45°: 240mm (circle) / 180mm (square) / 160mm x 240mm (rectangle)
• Cutting Capacity @ 60°: 160mm (circle) / 100mm (square) / N/A (rectangle)
• Cutting Capacity @ 45° (L): 210mm (circle) / 180mm (square) / 150mm x 180mm (rectangle)
• Warranty: 2 Years
